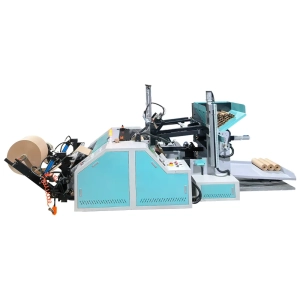

Honeycomb paper production machine

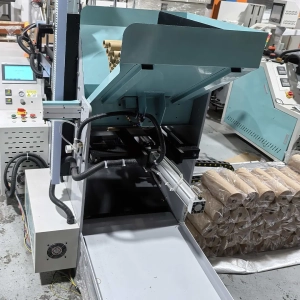

The fully automatic honeycomb paper making machine production line adopts an advanced mechanical design and control system to realize an automated production process, including key links such as automatic feeding, forming, pressing, and cutting. And it has Automatic tube loading device and automatic correction system to achieve efficient and reliable production.

Based on high-speed forming and pressing technology, it also has 110 synchronous electromechanical cylinder corrections. Through a series of cutting and forming and 300-roll friction winding processes, the kraft paper is quickly formed and pressed to form a honeycomb structure and finally produces honeycomb paper of various specifications.

Principle And Production Process

1. Raw material preparation:

• Kraft paper roll preparation: The production line uses high-quality kraft paper as raw material. The surface paper is usually tougher and is used for the outer layer; the core paper is used for the inner honeycomb structure.

2. Paper processing:

• Cutting: The paper is cut to a size suitable for subsequent processing to ensure accuracy and consistency.
• Gluing: A layer of adhesive, usually water-based or hot melt adhesive, is applied to the surface of the core paper and kraft paper to ensure a strong bond.

3. Honeycomb structure formation:

• Folding: The core paper is folded into a honeycomb structure through a folding machine. This step requires precise control to form a regular hexagonal honeycomb to ensure the uniformity and strength of the structure.

4. Bonding:

• Lamination: The kraft paper and the honeycomb paper core are combined in a laminator, and high temperature or pressure is used to accelerate the curing of the glue to ensure that the two layers of paper are tightly bonded without delamination.

5. Cutting:

•Cutting: The bonded honeycomb paper roll is cut into the required size and shape by high-precision cutting equipment to ensure neat edges and no burrs.

6. Quality inspection:

•Inspection: The produced honeycomb paper is inspected by an automated inspection system to check for incompleteness, delamination, or other defects to ensure product quality.

7. Packaging and storage:

•Packaging: Qualified honeycomb paper roll is packaged, usually using moisture-proof and dust-proof materials for easy transportation and storage.

8. Automated control:

•Control system: The production line is equipped with an automated control system to coordinate the operation of each link, monitor production parameters, and ensure efficient and stable production.
