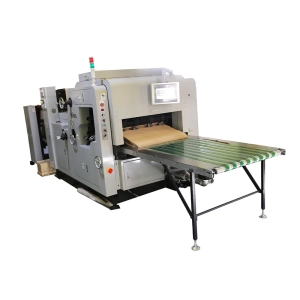

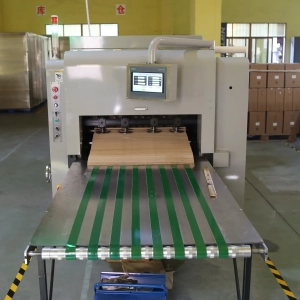

Fanfold Paper production machine
Wider paper design
Auto folding to reduce labor cost
Industrial grade
Production speed up to 985ft per minute
Specification
Item | Fanfold Paper Production Equipment |
Maximum production width | 780mm |
Maximum rewinding diameter | 1200mm |
Paper weight | 40g - 150g /m2 |
Maximum roll weight | 600kg |
Production speed | 5m - 300m / minute |
Fold size | 8 - 15 inches |
Weight | 4500kg |
Size | 5.5m x 1.65m x 1.7m |
Power | 380V 50HZ |
Main Motor | 22kw |
Paper loading mode | Hydraulic paper feeding |
Logo and Color | OEM machine available |
Description
The 762mm Fanfold Z Fold Paper Folding Machine is an industrial-grade equipment used to automatically fold large rolls of kraft paper into Z Fold/Fanfold structure paper. The Z Fold paper generated by this equipment is mainly used as the front-end supporting equipment of the intelligent kraft Paper Cushion Machine, providing continuous, neat and stable folding paper raw materials for paper pad production. It is widely used in transportation buffering, filling the gaps inside cartons and environmentally friendly buffer packaging solutions. The maximum working width of 780mm makes it particularly suitable for packaging factories and system integrators that require high efficiency and large-scale paper pad production, and it is also the most cost-effective one. Through a precise folding mechanism and continuous feeding system, the equipment ensures: 1. Consistent folding length 2. Neatly arranged paper sheets 3. No tearing or deformation
